Upgraded 628661 RV Refrigerator Board – Direct Replacement Power Control Circuit Board for Norcold N8, N6, N4 Series & More – Compatible with N51X, N41X, N1095, 1200, 1210 Models (6 and 10 Pin)
$7.99
Related Products
Price: $97.74 - $7.99
(as of Nov 28, 2025 11:25:01 UTC – Details)

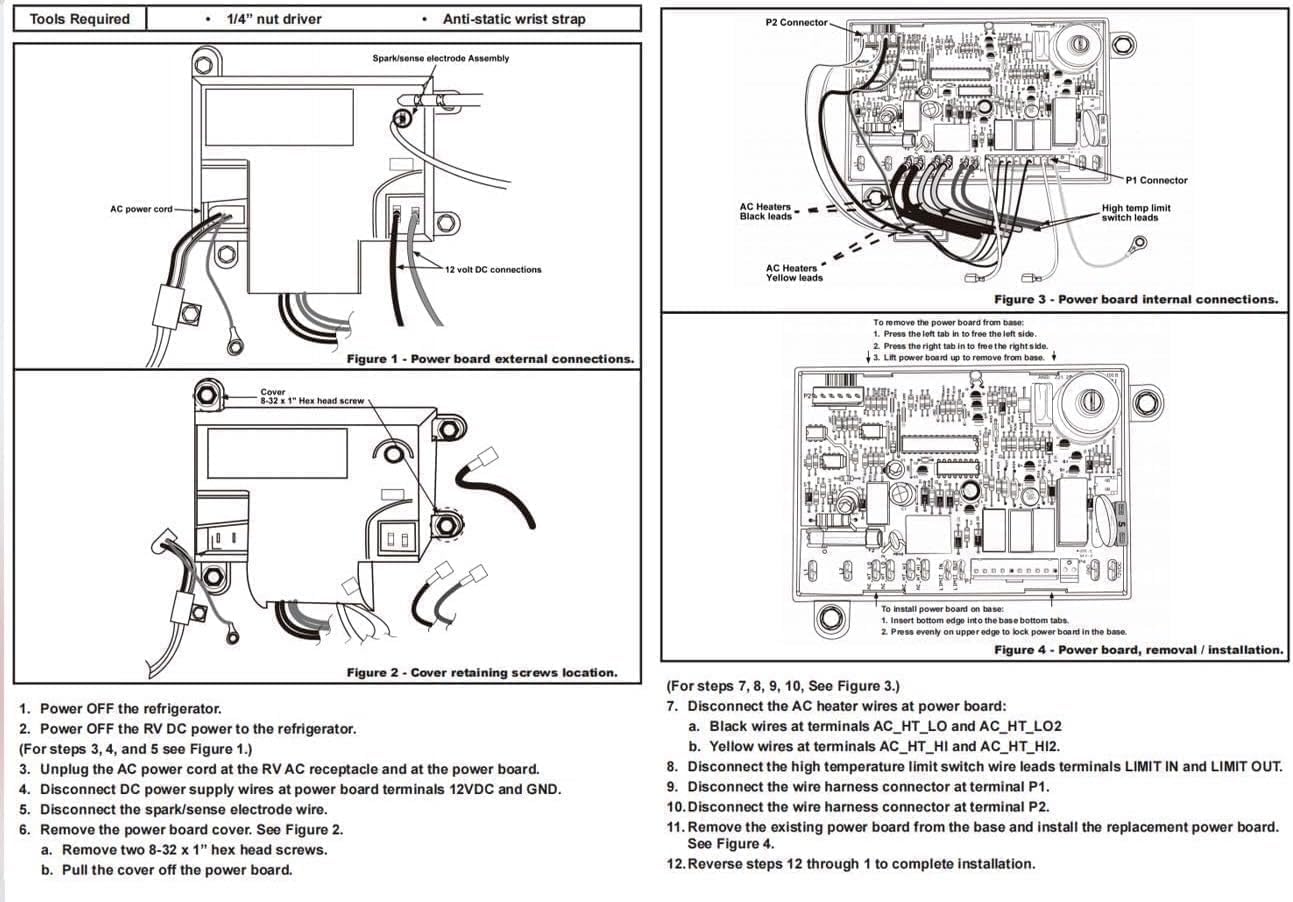

Below are the Norcold refrigerator models that this board fits: (If your refrigerator was manufactured in 2006 or newer, this could be the board that you need. Simply put, if your power board looks like the one above, then it is the one above because no other Norcold power board looks like this. If your refrigerator was manufactured Pre-2006, then this board will not fit your refrigerator, regardless of model number.) N41X/ N51X Series- N410, N410.3, N412, N412.3, N510, N510.3, N512, N512.3 N6XX Series – N611, N621, N621F, N623, N624, N641, N641F, N643 N8XX Series – N811, N821, N821F, N821V, N822, N822F, N823, N824, N841, N841V, N842, N843 NX/ NXA Series – NX611, NX641, NX641.3, NXA641, NXA641.3, NX811, NX841, NX841.3, NXA841, NXA841.3 N1095 Series 1200 Series 1210 Series 1211 Series 2117 Series Serial Number range will vary with the specific model refrigerator, however, if the board you have on your refrigerator looks like the board pictured above, IT IS! This style board has two plug connectors (one row of 10 pins and one row of 6 pins) while the older style boards are more rectangular and have only one 16 pin plug connector
If your refrigerator was manufactured in 2006 or newer, this could be the board that you need. Simply put, if your power board looks like the one above, then it is the one above because no other Norcold power board looks like this. If your refrigerator was manufactured Pre-2006, then this board will not fit your refrigerator, regardless of model number.
Serial Number range will vary with the specific model refrigerator, however, if the board you have on your refrigerator looks like the board pictured above, IT IS! This style board has two plug connectors (one row of 10 pins and one row of 6 pins) while the older style boards are more rectangular and have only one 16 pin plug connector
The Norcold 628661 is a 2-way refrigerator power supply circuit board that fits most models. Fits the following models: N41X/ N51X Series- N410, N412, N510, N512 N6X Series – N611, N621, N621F, N623, N624, N641, N641F, N643 N8X Series – N811, N821, N821F, N821V, N822, N822F, N823, N824, N841, N841V, N842, N843 NX/ NXA Series – NX611, NX641, NXA641, NX811, NX841, NXA841 N1095 Series, 1200 Series, 1210 Series, 1211 Series.This is the current power board being used in most of the Norcold refrigerators manufactured after 2006
Package Dimensions: 6.69H x 1.97L x 4.72W (in)**If your model ends with “3” or “. 3”, it means it has a DC heating element. You need to purchase the accessory separately on your own
628661 Refrigerator Power Circuit Board Complies with OEM standards，The circuit board is made of high-quality materials，manufactured by an ISO-certified manufacturer, has passed the quality inspection of UL, CE and RoHS
8 reviews for Upgraded 628661 RV Refrigerator Board – Direct Replacement Power Control Circuit Board for Norcold N8, N6, N4 Series & More – Compatible with N51X, N41X, N1095, 1200, 1210 Models (6 and 10 Pin)
Add a review
$7.99
Old Top Kick –
Works Perfectly
The fridge in our 2008 motorhome quit working entirely. I was able to locate factory troubleshooting instructions on line and all tests pointed to the control circuit board.Installation is straightforward for anyone with midrange mechanical and electrical skills. Releasing the electrical connectors can be tricky, so proceed with caution.It’s also a good idea to photograph and tag the connections before you start. It’s very easy to mess up the heavy gauge wires to the heater coils, though doing so won’t hurt anything other than your pride.
Clay McBride –
Exactly replacement
This board was an exact replacement for my old board and it works great! I would definitely recommend this product.
Skip –
Incorrect soldering on board
This was defective. Two of the terminals pulled out of the circuit board because they were not soldered correctly. I thought that since it said “Genuine Norcold part” that it would be better quality … I guess not. Returned for refund.
SJWHEA –
PERFECT FIT
Delivered as promised and as described. It was shipped protected from damage. Fit perfectly.
Rick A. –
Good product
This circuit board solved my issue
Norman Franklin –
Did not work
It did not work
Denny –
Worked perfectly
Fixed my problem and works perfectly
Augie D. –
Does Not Fit Norcold Model N8XR
I am not surprised that the Amazon website indicated this is a frequently returned item. The seller’s description states this board will work in the Norcold N8X series. It will not. Per the Norcold parts list, part 639593 KIT MAIN CONTROL BOARD ASSY is the right part. I contacted the seller and they told me to return this and by the correct one. That would be an appropriate response if they followed up with a website correction but I doubt that will happen. Norcold factory parts lists are easily found online. All you have to do is search your model number. I wish I would have checked first instead of relying on the seller.
