4pcs Temperature Controller Module with Case W1209 12V DC Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch with Waterproof NTC Probe

Price: $5.99
(as of Dec 01, 2025 11:22:15 UTC – Details)

4pcs temperature controller module with case W1209 12v dc digital temperature controller board micro digital thermostat -50-110°C electronic temperature temp control module switch with waterproof NTC probe
Using Method:
Connect the power supply and equipment, the measuring temperature is displayed
Press the “SET” button, press ” + or – ” to set the desired temperature (long press ” + or – ” to quickly increase or decrease)
Press “SET” to confirm the setting and return, controller automatically performs the relay ON/OFF
The thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed.
Digital LED Tubes: “LL” indicates sensor open, “HH” indicates overrange, the relay will be forcibly disconnected; “—” indicates high temperature alarm
Long press the “SET” button to enter the main menu settings,
press ” + or – ” to switching between P0-P6, then long press “SET” or 10 seconds without keystrokes to confirm the setting and return
Specifications:
Model: W1209 with case
Dimensions: 48.5 x 40 mm
Temperature control mode: ON or OFF
Temperature range: -50-110°C Resolution: when temperature is 0.1 degree, the resolution is -9.9 – 99.9, other temperature segment is 1 degree.
Control accuracy: 0.1 degree
Hysteresis accuracy: 0.1 degree
Refresh rate: 0.5 s
High temperature protection 0 – 110 degree centigrade
Supply voltage: DC 12V
Static current: less than 35MA, attract current less than 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC, 10K 0.5 percent waterproof sensor
Requirements: -10 – 60 degree centigrade, humidity: 20 – 85 percent
Package includes:
4 *W1209 12V DC digital temperature controller board with case.

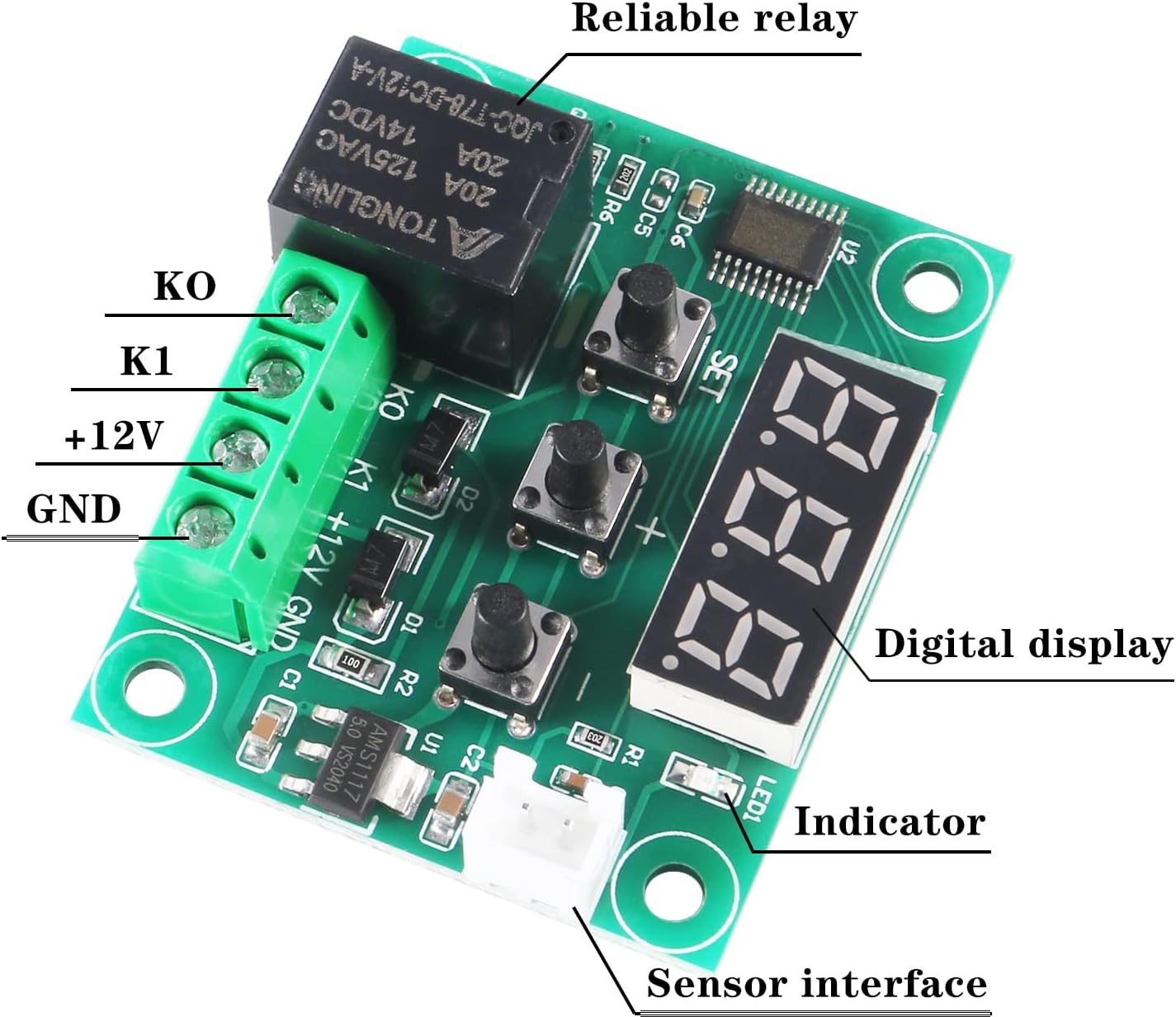

【W1209 Features】The W1209 thermostat module controller has a sensor input, keys, LED display, and a relay.Absolutely complete machine patch, stable performance, good consistency.
【Embedded CPU Chip】The XH-W1209 led display digital thermostat module embedded CPU chip (MCU), is more intelligent, lower power consumption; Automatic power set memory, MCU built-in EEPROM memory unit.
【Temperature Controller Parameter】Temperature range: -50-110°C; Control precision: 0.1 celsius.Input power (DC): 12V; Measuring inputs: NTC (10K 0.5%) ; Waterproof sensor: 0.5M; Output: 1 channel relay output, capacity: 10A; Power consumption: Static current: 35mA; Current: 65mA.
【Waterproof NTC Probe】The NTC probe is waterproof and can control the temperature, allowing to control heating or cooling.(The wood laminate case is the clear plastic case. You need to tear the wood outside layer off carefully, the outside layer is very thin, which can protect the inside to prevent scratches; And you need to assemble and install the case by yourself, it comes disassembled with tiny bolts and nuts.)
【Package Includes】4pcs W1209 12V DC digital temperature controller board with case.(Ps: The product is not assembled, if you need assembly instructions or if you encounter any problems during use, you can contact us at any time. Thank you for your support.)
